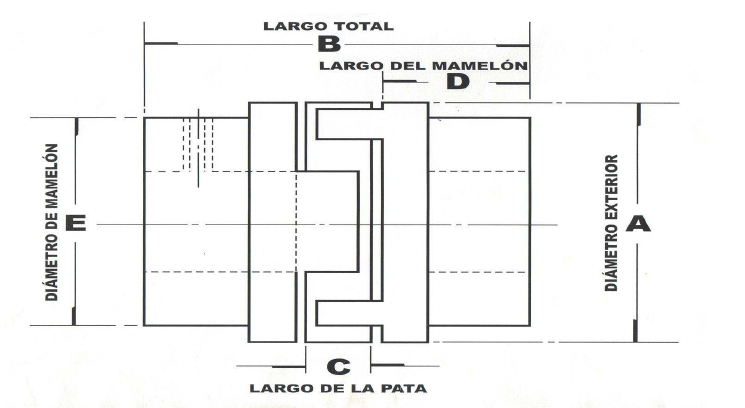

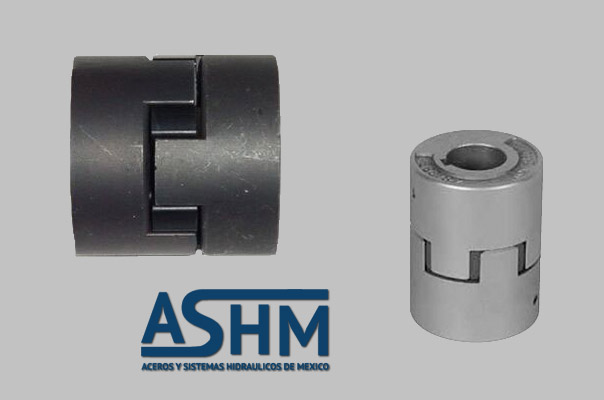

| Dimensiones En Pulgadas Cople Barreno | |||||||
| No | PIL. | MAX. | A | B | C | D | E |
| 0 | 5/8 | 1.5/16 | 1.7/8 | 7/16 | 3/4 | 1.5/16 | |
| .5 | 7/8 | 1.3/4 | 2.3/8 | 1/2 | 15/16 | 1.1/2 | |
| 1 | 1/2 | 1 | 2.1/8 | 3 | 1/2 | 1.1/4 | 1.5/8 |
| 2 | 1/2 | 1.1/4 | 2.1/2 | 3.1/4 | 5/8 | 1.5/16 | 2.1/16 |
| 3 | 5/8 | 1.1/2 | 3.1/4 | 4 | 3/4 | 1.9/16 | 5.5/8 |
| 3.5 | 5/8 | 1.5/8 | 3.5/8 | 5 | 1 | 2 | 3.1/8 |
| 4 | 3/4 | 2.1/8 | 4.1/2 | 5.1/4 | 1 | 2.1/8 | 3.5/8 |
| 5 | 3/4 | 2.1/2 | 5.7/16 | 6.1/4 | 1.3/16 | 2.1/2 | 4.7/16 |
| 6 | 1 | 3 | 6.3/8 | 8.3/4 | 1.3/4 | 3.1/2 | 5.1/8 |
| Capacidad de H.P. y R.P.M. | |||||||||||
| Cople No. | FACTOR DE SERVICIO | 100 | 300 | 600 | 900 | 1,200 | 1,500 | 1,800 | 2,400 | 3,000 | 3,600 |
| 0 | 1.0 1.5 2.0 |
.06 .04 .03 |
.18 .12 .09 |
.36 .24 .18 |
.56 .36 .27 |
.72 .48 .36 |
.90 .60 .45 |
1.08 .72 .54 |
1.44 .96 .72 |
1.80 1.2 .90 |
2.16 1.44 1.08 |
| 0.5 | 1.0 1.5 2.0 |
.12 .08 .06 |
.36 .24 .18 |
.72 .48 .36 |
1.08 .72 .54 |
1.44 .96 .72 |
1.80 1.20 .90 |
2.16 1.44 1.08 |
2.88 1.92 1.44 |
3.6 2.4 1.8 |
4.32 2.88 2.16 |
| 1 | 1.0 1.5 2.0 |
.28 .18 .14 |
.84 .56 .42 |
1.68 1.12 .84 |
2.52 1.68 1.26 |
3.36 2.24 1.68 |
4.2 2.8 2.1 |
5.04 3.36 2.52 |
6.72 4.48 3.36 |
8.4 5.6 4.2 |
10.08 6.72 5.04 |
| 2 | 1.0 1.5 2.0 |
.60 .40 .30 |
1.8 1.2 .9 |
3.6 2.4 1.8 |
5.4 3.6 2.7 |
7.2 4.8 3.6 |
9.0 6.0 4.5 |
10.8 7.2 5.4 |
14.4 9.6 7.2 |
18.0 12.0 9.0 |
21.6 14.4 10.8 |
| 3 | 1.0 1.5 2.0 |
1.1 .73 .55 |
3.3 2.2 1.65 |
6.6 4.4 3.3 |
9.9 6.6 4.95 |
13.2 8.8 6.6 |
16.5 11.0 8.25 |
19.8 13.2 9.9 |
26.4 17.6 13.2 |
33.0 22.0 16.5 |
39.6 26.4 19.8 |
| 3.5 | 1.0 1.5 2.0 |
1.7 1.13 .85 |
5.1 3.4 2.55 |
10.2 6.8 5.1 |
15.3 10.2 7.65 |
20.4 13.6 10.2 |
25.5 17.0 12.75 |
30.6 20.4 15.3 |
40.8 27.2 20.4 |
51.0 34.0 25.5 |
61.2 40.8 30.6 |
| 4 | 1.0 1.5 2.0 |
2.2 1.47 1.1 |
6.6 4.4 3.3 |
13.2 8.8 6.6 |
19.8 13.2 9.9 |
26.4 17.6 13.2 |
33.0 22.0 16.5 |
39.6 26.4 19.8 |
52.8 35.2 26.4 |
66.0 44.0 33.0 |
79.2 52.8 39.6 |
| 5 | 1.0 1.5 2.0 |
3.3 2.2 1.65 |
9.9 6.6 4.95 |
19.8 13.2 9.9 |
29.7 19.8 14.85 |
39.6 26.4 19.8 |
49.5 33.0 24.75 |
59.4 39.6 29.7 |
79.2 52.8 39.6 |
99.0 66.0 49.5 |
118.8 79.2 59.4 |
| 6 | 1.0 | 7.3 | 21.9 | 87.6 | 131.4 | 262.8 | |||||
| Factores de Servicio: 1.0 Motores Eléctricos 1.5 Motores de Gasolina o Diesel de 6 o más cilindros 2.0 Motores de Gasolina o Diesel de hasta 6 ciilndros |
|||||||||||
